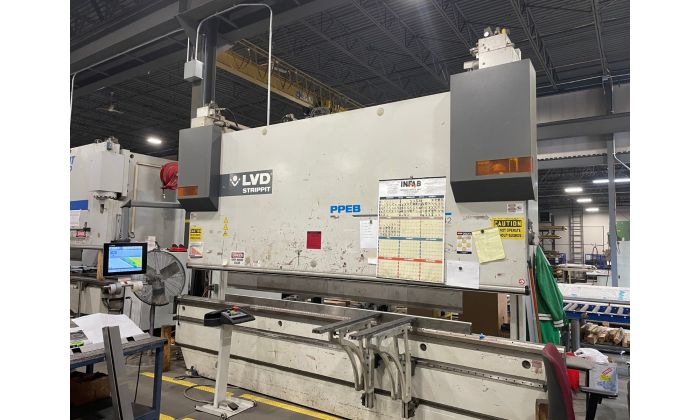

LVD 135-4, 135 Tons, 5 Axis, Year New 2010
Strippit LVD model 135-4 is a 135-ton 4-meter brake with X, R, Z, a six-axis back gauge, motorized crowning, Willa-style hydraulic upper clamping, and robust LVD PC color graphics control for fast set-up and accurate bending.
| Model | LVD 135-4 |
| Tonnage | 135 |
| Max Bend Length | 171” |
| Max Stroke Length | 7” |
| Open Height | 17.70” |
| Throat Depth | 16.10” |
| Distance Between Frames | 148" |
| Control | LVD PC control |
| Axis | 5 |
| Machine Height | 116” |
| Machine Length | 178” |
| Machine Width | 86” |
| Year Mfg. | 2010 |
PART #
2010 LVD 135-4
